Best Window Tint for the MG S5 EV in Malaysia: 3M Crystalline Black for Panoramic Sunroof and MG Pilot ADAS

If you have just collected your 2026 MG S5 EV CKD in Malaysia, a car that starts at RM116,900 at the 24 April 2026 launch, picking the right 3M window tint is one of the most useful protection decisions you can make in the first week. The MG S5 EV ships with a panoramic sunroof, a 62 kWh LFP battery, a 15.6 inch touchscreen, and the full MG Pilot ADAS suite with a 360 camera. All of those features touch the glass or the cabin temperature. The right tint film either supports them quietly or fights them every day. This guide explains how 3M Crystalline Black and the rest of the current 3M range fit the MG S5 EV, what each option costs in Malaysia, how to stay compliant with JPJ, and how much extra range you can realistically expect.

For broader background on the science behind 3M films and Malaysian driving conditions, see why 3M window tinting is the top pick for Malaysian drivers.

What 3M Window Tint Does for the MG S5 EV in Malaysia

3M window tint for the MG S5 EV cuts up to 62% of total solar energy (at the darkest CR BLK 15 shade), blocks 99.9% of UV light, reduces glare on the 15.6 inch infotainment, and protects the MG Pilot ADAS sensors because the film is built from non-metallised multilayer optical film rather than sputtered metal. The same film also helps the air conditioner work less hard, which matters on a 62 kWh LFP pack rated for 446 km WLTP and a body that runs daily under tropical sun.

For an MG S5 EV owner, those four jobs add up to a calmer cabin, longer real-world range, and an ADAS system that does not throw extra false warnings because the front camera is fighting heat haze or signal interference.

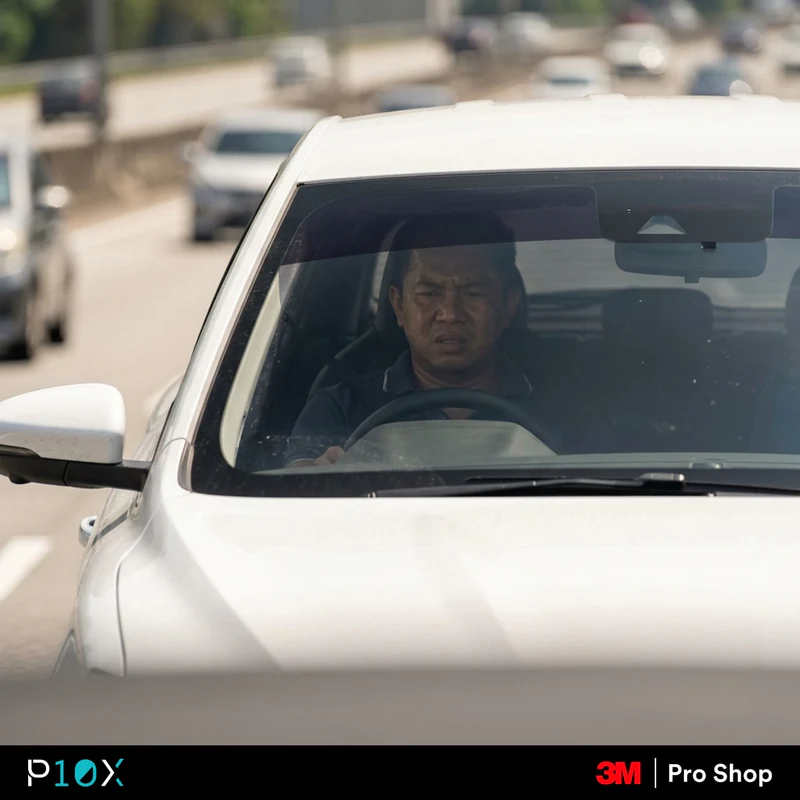

Why MG S5 EV Owners Need Premium Tint in Malaysia

Three real owner pain points show up across the MG S5 EV Malaysia community. First, the panoramic sunroof feels great at handover, but two weeks into Klang Valley driving, the cabin gets very warm under noon sun and the climate system spends more time recirculating than cooling. Second, the 62 kWh LFP pack is range-sensitive in heat, so any time the A/C compressor runs hard, you lose a noticeable chunk of estimated range. Third, the MG Pilot system is alert by design, and any visual or signal noise around the front camera leads to extra warning tones during normal city driving.

Premium tint addresses all three. High TSER on the windscreen, side glass, and panoramic sunroof lowers the surface temperature of the dash, seats, and roof lining. Less heat in the cabin means the A/C draws less power, which gives the LFP pack a small but real range cushion. A non-metallised film keeps the camera, radar, and iSMART signals free of metal-layer interference.

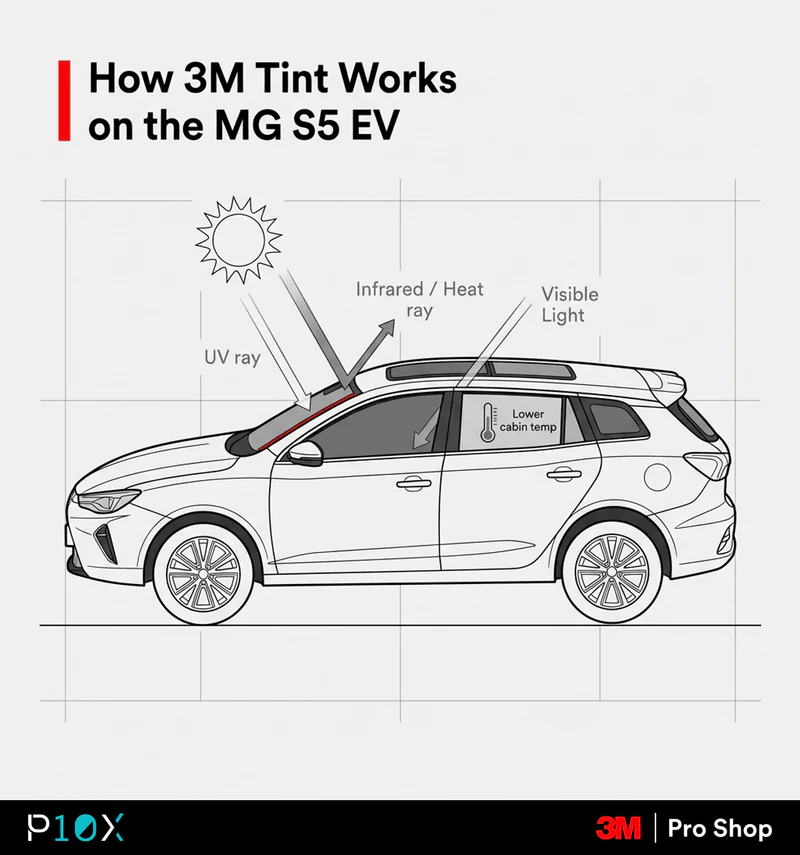

How 3M Crystalline Black Works on the MG S5 Glass

3M Crystalline Black is built from around 200 nano-layers of multilayer optical film, stacked thinner than a Post-it note. Each layer is tuned to reflect or absorb a specific slice of the infrared spectrum, which is the part of sunlight you feel as heat. Because the film is non-metallised, it does the heat work using optics, not sputtered metal.

That construction matters for the MG S5 EV in three ways:

• The MG Pilot front camera sits behind the windscreen. A non-metallised film keeps the camera's view clean and does not introduce metal-layer interference that some sputtered films can cause.
• The 360 camera, blind-spot radar, and iSMART connectivity rely on signal pathways that prefer film with no metal content. Crystalline Black uses optics, so mobile, GPS, and satellite radio signals pass through normally.
• High infrared rejection across all eight shades (CR BLK 15 through 80) means you can pick a legal lighter shade for the windscreen and a darker shade for the sides without sacrificing heat performance.

3M Tint Series for the MG S5 EV Compared

For an MG S5 EV in Malaysia, 3M Crystalline Black is the top pick for daily Klang Valley driving, Ceramic IR is the value-performance step down, and XP Series is the budget floor. All three carry a 5-year E-Warranty when installed by a 3M Authorized Dealer. Use the comparison below to narrow down before you visit for a fitting.

Crystalline Black for the Daily KL Driver

This is the recommended pick for most MG S5 EV CKD owners in Klang Valley. The 200 nano-layer construction lets the film pull heat out of the cabin without going visibly dark. The non-metallised build protects MG Pilot, the 360 camera, and iSMART. The 5-year E-Warranty is registered against the chassis number through an authorised dealer.

Ceramic IR for Value-Performance Buyers

Ceramic IR uses metal-free nano-ceramic and reaches up to 63% TSER and 95% IRR. The glare numbers are higher at the darker shades, which some owners prefer for the rear sides. For an MG S5 EV owner who wants strong heat numbers but is not ready to spend on the flagship, Ceramic IR is a clean step down.

XP Series for Budget-Conscious Owners

XP Series is the entry option. It still hits 99.9% UV rejection and up to 95% glare reduction, but TSER drops to around 55% and IRR to about 38%. For an MG S5 EV that mostly lives in a covered car park and only does short trips, XP is a sensible floor. For daily KL traffic under direct sun, most owners feel the difference and move up.

3M Crystalline Black vs Sputtered Metal Tints for MG Pilot

Some competing window films use sputtered rare-earth metal layers to block heat. Those layers can interfere with infrared and radio-frequency systems that sit behind the glass. On an MG S5 EV, those systems include the MG Pilot front camera, the 360 camera, the blind-spot radar, and iSMART connectivity.

3M Crystalline Black is built differently. It is a non-metallised multilayer optical film, so the heat rejection comes from how light bounces between hundreds of nano-thin polymer layers, not from any metal content. That means mobile data, GPS, and satellite radio signals pass through normally, and the MG Pilot suite sees the road through a clean, clear lens.

A few practical implications for an MG S5 EV owner:

• The MG Pilot front camera tracks lane lines and the car ahead. A non-metallised film does not add unwanted reflections or signal noise behind the windscreen.
• The 360 camera stitches four views into one top-down picture. Film with consistent optical clarity across all glass keeps that picture sharp.
• iSMART pulls software updates over the air. Non-metallised film does not block those updates.

For a side-by-side comparison against other tint brands sold in Malaysia, see 3M Crystalline Black vs other tint brands.

5 Common Mistakes When Tinting an MG S5 EV in Malaysia

Five mistakes show up over and over when MG S5 EV owners book tint in the first few weeks after collection. Each one is easy to avoid once you know to look for it.

• Choosing metallic film near ADAS sensors. A sputtered-metal film placed across the windscreen, the side mirrors, or near the 360 camera area can introduce interference. Pick a non-metallised film like Crystalline Black or Ceramic IR.
• Going below 70% VLT on the windscreen. JPJ requires at least 70% VLT on the windscreen. Going darker risks both a summons and reduced MG Pilot front camera performance in low light.
• Skipping sunroof tint to save cost. The panoramic sunroof is the single biggest heat entry point on the MG S5 EV. Skipping it leaves rear passengers in direct heat and forces the A/C to work harder.
• Buying from a non-authorised reseller. Counterfeit film and grey-market rolls do circulate. Without an authorised dealer invoice, the 5-year E-Warranty does not register against your chassis number, and you also miss the consistency of a professional 3M tint installation process.
• Tinting on the same day as collection. New glass benefits from a short settle window. Book the appointment a few days after handover so the installer can prep the glass properly in a controlled bay and avoid common tint installation problems like bubbles, dust specks, and peeling edges.

Working with a 3M Authorized Dealer such as 3M Pro Shop by P10X removes all five risks, because the film is sourced through 3M Malaysia, registered to your chassis number, and installed in a controlled bay rather than an open driveway.

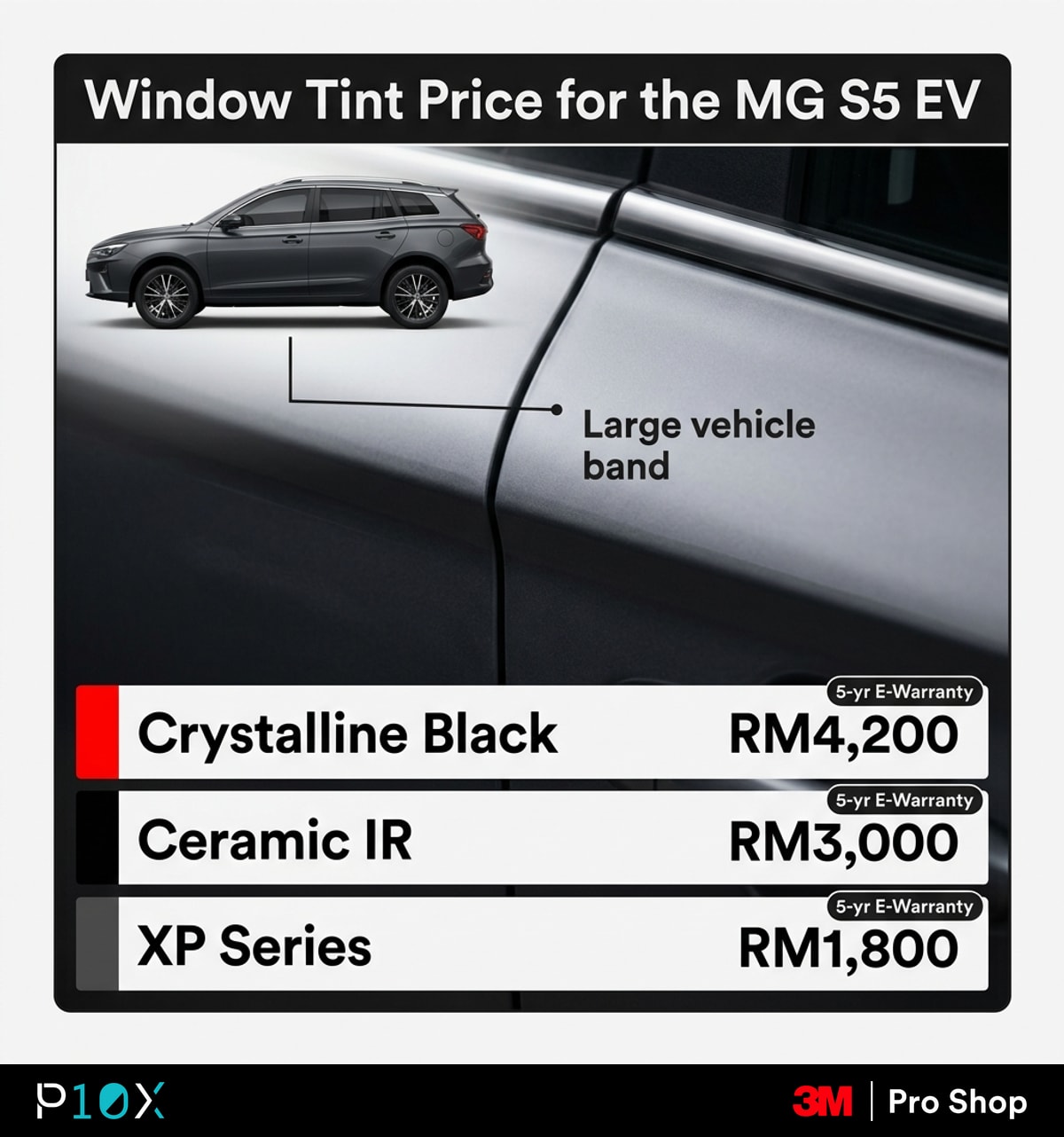

3M Window Tint Pricing for the MG S5 EV (RM)

The MG S5 EV measures 4,476 mm long, 1,849 mm wide, and 1,621 mm tall. On the 3M Pro Shop pricing list, that fits inside the Large vehicle band. Use the Large column when budgeting.

All packages include the full-car install (windscreen, four sides, rear) and the 5-year E-Warranty registered against your chassis number.

If you also plan to apply 3M Paint Protection Film for the MG S5 EV, the Pro Shop Best Seller bundles pair PPF with Crystalline tint at a combined price. Package 1 (PPF Series 100 Gloss plus Crystalline) starts at RM17,000 base. Package 2 (PPF Series 150 Gloss plus Crystalline) starts at RM22,000 base. Both add RM1,000 for Large vehicles like the MG S5 EV.

For a wider breakdown of what drives 3M tint pricing across vehicle sizes, see complete 3M window tint pricing in Malaysia.

JPJ 70% VLT Compliance for the MG Pilot Front Camera

To stay JPJ-compliant on the MG S5 EV, keep the windscreen at 70% Visible Light Transmission (VLT) or higher, front sides at 50% VLT or higher, and apply any shade you like on the rear. These rules have been in force since 2023 and remain current.

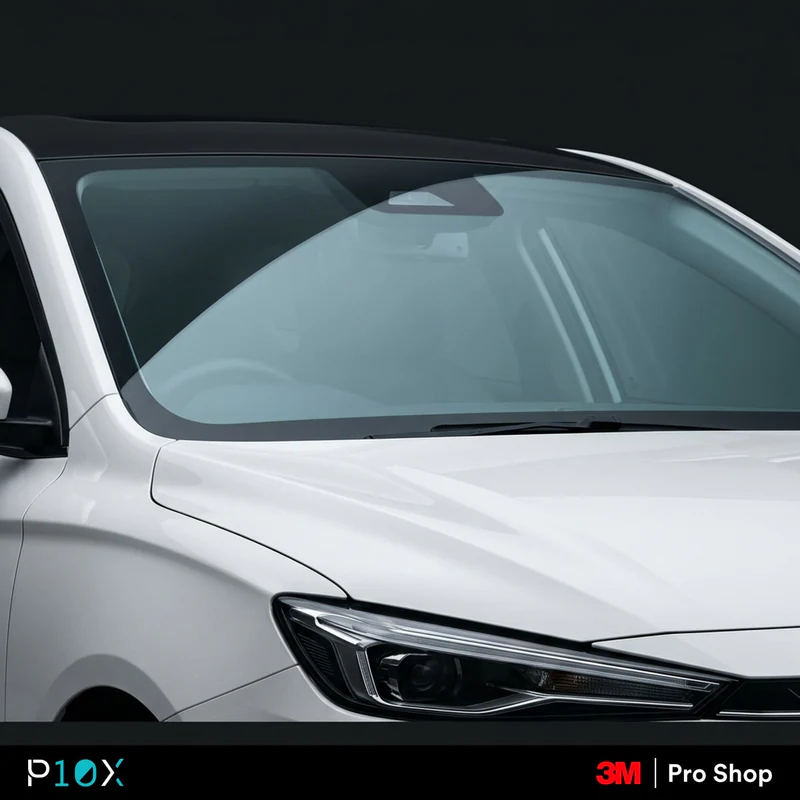

For the MG S5 EV, the 70% windscreen rule matters more than it does on a normal ICE car. The MG Pilot front camera is mounted behind the windscreen, looking at lane lines, the car ahead, and traffic signs. Going darker than 70% VLT on the windscreen reduces the light reaching that camera, which can degrade ADAS performance under low-light conditions like underground car parks, heavy rain, and twilight.

A safe MG S5 EV setup is Crystalline Black 70 or 80 on the windscreen for legal compliance and clean ADAS input, with darker shades like CR BLK 30 or 35 on the front sides (still over 50% VLT) and an even darker shade on the rear for privacy and heat. For the full breakdown, see JPJ-compliant window tint rules.

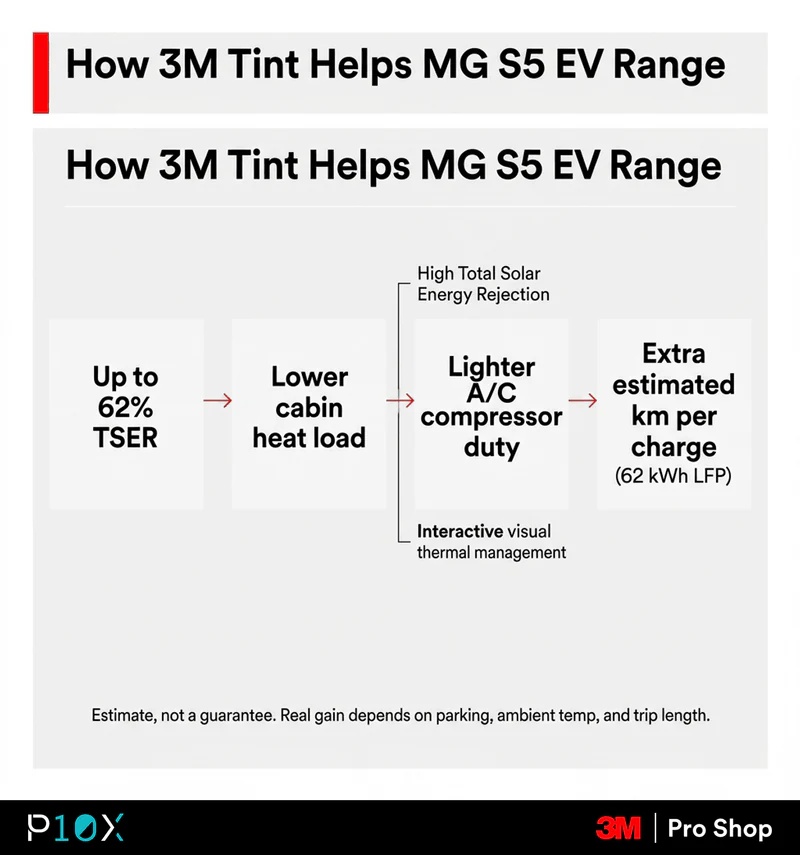

How 3M Tint Extends EV Range on the 62 kWh LFP Battery

3M window tint extends MG S5 EV range by cutting cabin heat, which lowers A/C compressor load on the 62 kWh LFP pack and typically returns a handful of extra kilometres per charge under Klang Valley conditions. Treat the gain as an estimate, not a guarantee.

The MG S5 EV CKD pack is rated for 446 km WLTP. In real Klang Valley conditions, owners on MyEVOC log closer to 380 km under heavy A/C use, with one owner reporting battery going from 98% to 81% over an 87 km drive. The A/C compressor is the second-largest electrical load after motion, and how hard it runs is partly a function of cabin heat soak.

The math, framed as an estimate rather than a guarantee, looks like this:

• A high-TSER film reduces solar energy entering the cabin by up to 62% (at CR BLK 15).
• That cuts the steady-state heat load on the A/C system once the cabin has cooled.
• A lighter A/C duty cycle draws fewer kWh per hour from the LFP pack.
• Over a typical daily KL commute, this can translate to roughly a handful of extra kilometres per full charge.

The exact figure depends on parking conditions (open lot vs covered), trip length, ambient temperature, and how cool you set the climate. As a rough framing, dropping the average A/C compressor load by even 0.3 to 0.5 kWh per hour on a 62 kWh pack adds noticeable range over a week of driving. The same logic applies to other EVs sold in Malaysia, as covered in how window tint impacts EV range (Proton eMAS 7 case study).

Treat any range gain claim as an estimate, not a hard number. The science is real, the math is directional, and the more honest framing is that tint helps the A/C work less hard, which helps the battery last a bit longer between charges.

If you would like a spec-based recommendation tailored to your driving pattern and parking conditions, 3M Pro Shop by P10X (or your nearest 3M Authorized Dealer) can walk through TSER, VLT, and warranty options at the 3M Pro Shop locations page. The current 3M tint range is also listed on the 3M Pro Shop window tint product page.

Find out the best protection for your car

Visit a 3M Pro Shop and discover the cost-effective 3M Protective Film and Window Tint

Book nowFind location

Frequently Asked Questions About MG S5 EV Window Tint

Does 3M window tint affect MG Pilot ADAS or the 360 camera on the MG S5 EV?

No. 3M Crystalline Black and Ceramic IR are built from non-metallised optical or nano-ceramic films, so they do not interfere with the MG Pilot front camera, the 360 camera stitching, or the blind-spot detection radar. The key is to stay at or above 70% VLT on the windscreen so the front camera still has enough light to read lane lines clearly.

Will window tint interfere with MG iSMART connectivity?

No, as long as you choose a non-metallised film. Crystalline Black, Ceramic IR, and XP Series are all metal-free in the layers that matter for signal pass-through, so mobile data, GPS, and over-the-air iSMART updates work normally.

How much does it cost to tint an MG S5 EV in Malaysia?

The MG S5 EV sits in the Large vehicle band on the 3M Pro Shop list. Expect about RM4,200 for a full Crystalline Black package, RM3,000 for Ceramic IR, or RM1,800 for XP Series. All three include the full-car install and a 5-year E-Warranty when fitted by a 3M Authorized Dealer.

What is the best tint for the MG S5 panoramic sunroof?

The panoramic sunroof carries the largest single area of glass on the car and is exposed to direct overhead sun. A high-TSER film like Crystalline Black is the strongest match because it lowers the heat reaching the roof lining and rear passengers without making the cabin feel dark.

Is 70% VLT enough to keep my MG S5 cool?

Yes, if the film behind that 70% VLT is a high-IRR film like Crystalline Black 70. Visible light and infrared light are different parts of the spectrum. A 70% VLT Crystalline Black film still rejects a large share of total solar energy and up to 95% of infrared, so the cabin stays comfortably cool while the windscreen stays JPJ-legal.

How much extra range does window tint add to the MG S5 EV?

Treat any number you see as an estimate. The mechanism is real: less cabin heat means a lighter A/C compressor load, which means fewer kWh per hour drawn from the 62 kWh LFP pack. Real-world gain varies with parking conditions and trip length, but it tends to show up as a handful of extra kilometres per charge over a week of driving.

How long does 3M window tint last on the MG S5?

The 3M Pro Shop 5-year E-Warranty covers fading, bubbling, peeling, and delamination for five years from install date. In practice, professionally installed 3M film on a daily-driven car in Malaysia typically performs well beyond the warranty window when the glass is cleaned with non-ammonia products and the film is not scrubbed with abrasive cloths.
